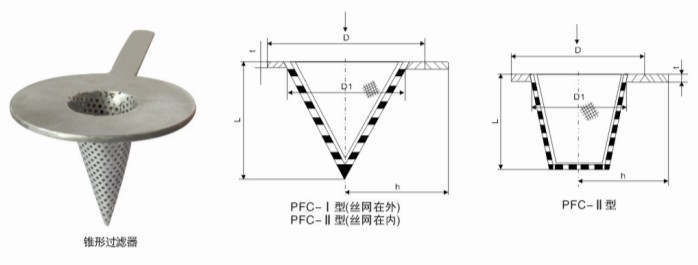

锥形过滤器 |
|
主要尺寸 Main dimensions
DN |
D1 |
D |
|
L |
h |
t |
|
PN1.0 |
PN1.6 |
PN2.5 |
PN4.0 |
PN2.0 |
PN5.0 |
PFC-I,II型 |
PCF-II型 |
|
25 |
19 |
70 |
70 |
70 |
70 |
64 |
71 |
26 |
46 |
90 |
2 |
|
32 |
24 |
80 |
80 |
80 |
80 |
73 |
80 |
34 |
61 |
100 |
2 |
|
40 |
30 |
90 |
90 |
90 |
90 |
82 |
92 |
41 |
66 |
120 |
2 |
|
50 |
44 |
105 |
105 |
105 |
105 |
100 |
107 |
55 |
81 |
130 |
2 |
|
65 |
58 |
125 |
125 |
125 |
125 |
120 |
127 |
77 |
91 |
140 |
2 |
|
80 |
68 |
142 |
142 |
142 |
142 |
132 |
146 |
92 |
111 |
150 |
2 |
|
100 |
90 |
162 |
162 |
162 |
162 |
170 |
178 |
113 |
141 |
160 |
2 |
|
125 |
114 |
192 |
192 |
192 |
192 |
194 |
213 |
143 |
172 |
190 |
2 |
|
150 |
140 |
218 |
218 |
218 |
218 |
220 |
248 |
172 |
202 |
210 |
2 |
|
200 |
188 |
272 |
273 |
282 |
290 |
276 |
304 |
242 |
262 |
240 |
2 |
|
250 |
238 |
326 |
329 |
340 |
352 |
336 |
357 |
302 |
322 |
270 |
2 |
|
300 |
288 |
382 |
384 |
395 |
416 |
406 |
418 |
353 |
362 |
300 |
2 |
|
350 |
316 |
438 |
444 |
454 |
474 |
446 |
482 |
425 |
404 |
340 |
6 |
|
400 |
366 |
492 |
495 |
510 |
545 |
510 |
536 |
479 |
464 |
365 |
6 |
|
450 |
414 |
542 |
568 |
568 |
609 |
557 |
609 |
548 |
504 |
395 |
6 |
|
500 |
464 |
590 |
646 |
616 |
628 |
602 |
650 |
600 |
565 |
430 |
6 |
|
600 |
564 |
690 |
732 |
726 |
746 |
714 |
702 |
714 |
684 |
490 |
6 | |
|
| |
|
