STB可调恒温式蒸汽疏水阀STB

双金属温调式蒸汽疏水阀 Bimetallic trap of temperature adjustment

产品介绍：TB型双金属片蒸汽疏水阀适用于散热器、换热器、夹套锅、加热盘管、烘干机、消毒器、层压机等。
结构特点：1、排放温度可在闲调解，安装姿势自由，内件全不锈钢。
2、利用高温凝结水行程水封式，有效减少蒸汽泄漏。
3、动作灵敏，抗水击，无噪音，排空性能优良。
4、结构简单，容易维修保养，适用高温蒸汽管线。
Inroduction：TB bimetallic steam trap is suitable for radiator，heat exchanger，drier，heating pipelines and sterilizer.
Structure:1.The temperature for allocation can be adjusted online and installation can be conducted in free way.All the parts inside are of stainless steel.
2.The condensed water of high temperature will form water sealing to effectively reduce the steam leakage.
3.The action is agile and excellent abilities to resist to resist water beating,and to discharge water;not produce noise.
4.Simple structure to facilitate to facilitate maintenance,being appropriate for steam pipelines of high temperature.
主要零件材料和性能参数

壳体压力等级 Shell pressure rank	1.6、2.5mpa	最大工作压差 Biggest work differential pressure	2.5mpa	允许背压率 Permission back pressure rate	≥75%
负荷泄露率 Load divulging rate	0%	适用过热蒸汽 Has been suitable the hot steam	优秀 Outstanding	节能效果 Energy conservation effect	优秀 Outstanding
使用介质 Applied medium	蒸汽、凝结水 Steam，condensing water	排放方式 Discharges the way	连续方式 Continual way	抗水击 Anti-pressure surge	优秀 Outstanding

技术参数表，Technological parameter date

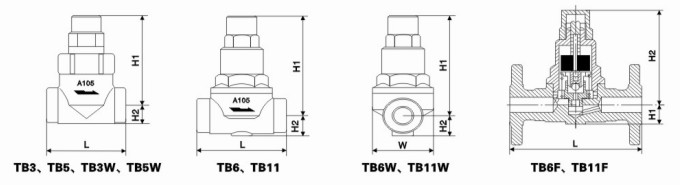

Model 产品型号	Nominal diameter 公称通径 DN	Connection 连接方式	Pressure raring 使用压力 MPa	Max allowable（℃）最高允许温度	Adjustment Rating（℃）调整温度范围	External diamensions（mm）外型尺寸				Re.weight 参考重量（kg）
Model 产品型号	Nominal diameter 公称通径 DN	Connection 连接方式	Pressure raring 使用压力 MPa	Max allowable（℃）最高允许温度	Adjustment Rating（℃）调整温度范围	L	H1	H2	W	Re.weight 参考重量（kg）
TB6	15~20 25	Thread 螺纹	0.01~1.6	220	50~180	90 95	108	25	63	1.8
TB6F	15~20 25 32~50	Flange 法兰	0.01~1.6	220	50~180	150 160 230	108	25	63	3.2 3.9 5.6
TB6W	15~20 25	Socket weld 承插焊	0.01~1.6	220	50~180	90 95	108	25	63	1.8
TB11	15~20 25	Thread 螺纹	0.01~1.6	220	50~190	90 95	108	25	63	1.8
TB11F	15~20 25 32~50	Flange 法兰	0.01~1.6	220	50~190	150 160 230	108	25	63	3.2 3.9 5.6
TB11W	15~20 25	Socket weld 承插焊	0.01~1.6	220	50~190	90 95	108	25	63	1.8
TB3	15~20 25	Thread 螺纹	0.01~1.6	350	50~190	80 85	90	23	56	1.5
TB3F	15~20 25	Flange 法兰	0.01~1.6	350	50~190	150 160	90	23	56	3.3 4.2
TB3W	15~20 25	Socket weld 承插焊	0.01~1.6	350	50~190	80 85	90	23	56	1.5
TB5	15~20 25	Thread 螺纹	0.01~2.1	350	50~200	80 85	90	23	56	1.5
TB5F	15~20 25	Flange 法兰	0.01~2.1	350	50~200	150 160	90	23	56	3.3 4.2
TB5W	15~20 25	Socket weld 承插焊	0.01~2.1	350	50~200	80 85	90	23	56	1.5
