自动反冲洗过滤器ZPG-II

ZPG型自动反冲洗过滤器 ZPG Automatic Back-flushing Filter
工作原理
管道系统在正常工作时，管道内杂物会收集到过滤器网内排污口上，不需拆卸过滤网任何部件来排污污物，只需打开排污阀即可排污。①在排污前先把过滤器前阀门，关小流量，进行排污。②排污时把转向阀转向冲洗方向，水从转向阀前部进入，往过滤网外部流过，然后又从过滤网外部进入转向阀后部，杂物全部集中到排污口上，然后再打开排污阀进行排污，起到了最佳自动发冲洗过滤器全部功能。
Working Principle
Under the normal service of pipeline system,the foreigh sucstance in pipeline will be collected to the discharge port in the filter strainer,so that it is no need to take off any parts of filter to remove the dirt,but only need to open the blowdown valve.Before discharhing.tum down the flow rate of the valve in foron of the filter to carry out the work of discharge.
Upon discharging,tum the reversing valve to the flushing direction.Water comes in from the forside of reversing valve.flowing through the extemal part of atrainer,and then into the back of reversing valve from the extemal part of strainer.The foreignsybatance will be gathered on the discharge port.Here,open the blowdown valve And all the perfomances of automatic back-flushing filter have been optimized.

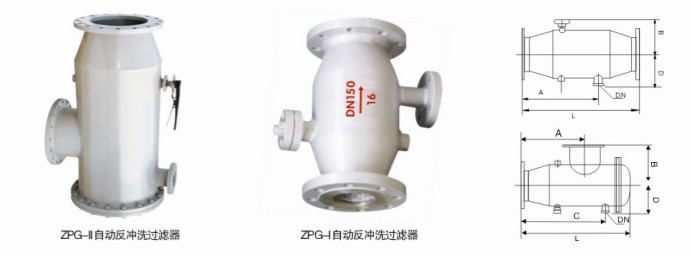

ZPG-I型（直通式）自动排污过滤器ZPG-I（Straight Through）Auto matic Blowdown Filter

型号	L	A	B	C	D
ZPG-I-40	245	185	63	90	15*
ZPG-I-50	255	190	70	100	15*
ZPG-I-65	270	195	83	120	20*
ZPG-I-80	320	232	96	140	25*
ZPG-I-100	350	260	128	180	32*
ZPG-I-125	438	326	162	200	40
ZPG-I-150	525	390	189	230	50
ZPG-I-200	700	520	220	280	65
ZPG-I-250	875	650	255	330	80
ZPG-I-300	1050	780	294	380	100
ZPG-I-350	1200	885	331	450	125
ZPG-I-400	1400	1040	377	480	150
ZPG-I-450	1550	1145	420	500	150
ZPG-I-500	1700	1250	462	580	150
ZPG-I-600	2000	1460	537	650	200
ZPG-I-700	2280	1720	607	700	200
ZPG-I-800	2500	1900	685	820	200
ZPG-I-900	2800	3281	785	880	200
ZPG-I-1000	3120	2470	860	920	250
ZPG-I-1100	3450	2780	915	960	250
ZPG-I-1200	3700	3000	965	1040	250
ZPG-I-1500	4470	3650	1220	1400	250

ZPG-II型（直角式）自动排污过滤器ZPG-II（Right-angled）Auto Blowdown Filter

型号	L	A	B	C	D	排污口（DN）
ZPG-L-40	320	170	80	226	90	15*
ZPG-L -50	350	185	90	244	100	15*
ZPG-L -65	380	200	100	270	120	20*
ZPG-L -80	445	230	110	310	130	25*
ZPG-L -100	536	265	160	365	140	32*
ZPG-L-125	624	315	190	440	200	40
ZPG-L-150	728	375	220	510	230	50
ZPG-L-200	884	500	160	670	280	65
ZPG-L-250	1120	625	310	830	330	80
ZPG-L-300	1310	750	350	1000	380	100
ZPG-L-350	1514	875	410	1180	450	125
ZPG-L-400	1730	1000	470	1350	480	150
ZPG-L-450	1896	1125	510	1500	500	150
ZPG-L-500	2080	1250	550	1680	580	150
ZPG-L-600	2490	1500	650	2000	650	200
ZPG-L-700	2680	1600	680	2150	700	200
ZPG-L-800	2880	1750	700	2300	820	200
ZPG-L-900	3150	1850	800	2480	880	200
ZPG-L-1000	3370	2000	900	2675	910	250
ZPG-L-1100	3610	2100	1000	2900	960	250
ZPG-L-1200	3850	2250	1100	3050	1040	250
ZPG-L-1500	4700	2800	1200	3800	1400	250
