拉杆伸缩过滤器 Draw Rod Expansion Filter
概念
YSTE型拉杆伸缩过滤器与Y型过滤器结构相同，就是另加一套伸缩接头组合，除垢原理与Y型过滤器相同，主要是安装时方便有伸缩。
Profile
YSTF draw rod expansion filter is the same in strucrure as Y-shaoed filter,but an additional expansion joint combination.And,the cleaning principle is the same as Y-shaped filter.However,there shall be kept easiness for expansion upon installation.

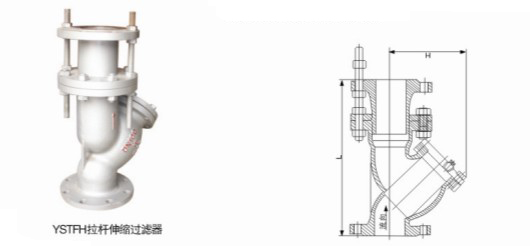

主要尺寸 Main dimensions
公称通径DN（mm） |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
L |
300 |
350 |
400 |
450 |
500 |
550 |
650 |
775 |
900 |
|
H |
130 |
165 |
195 |
230 |
300 |
335 |
420 |
500 |
580 | |
