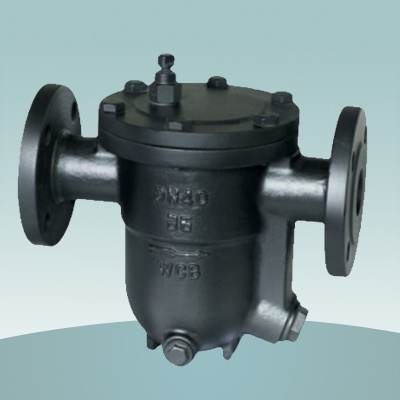

自由浮球式蒸汽疏水阀 Free ball float type stream trap

产品介绍：自由浮球式蒸汽疏水阀是国内外近年来最先进的蒸汽疏水阀之一，产品技术质量和制造工艺达到国际上同类产品的水平，能将蒸汽管道网及供热设备中的凝结水及时排出，并组织蒸汽泄漏，该产品广泛用于石油、化工、轻纺、印染、制药、造纸、食品等工矿企业。
结构特点：1、能连续排水性能稳定，排水量大，漏气率小，背压率高。
2、不锈钢空心自由浮球是阀门唯一的主要部件，采用不锈钢高精度研磨的圆浮球，
3、内部零件，均为不锈钢，抗腐蚀、耐磨损、使用寿命长。
Introduction:Free-ball is one of the most advanced traps in China in recent years.Both its quality and production rechniques enjoy the same level of the products of its kind of trap is fully able to timely discharge the condensed water in the wteam pipelines and heating equipment and to block the leakge of steam.This trap has an extensive application in petroleum,chemical industry,light textile,printing,pharmacy,paper making,foods and mines.
Structures:1.Stable discharge of water with large amount,small rate of steam leakge,high rate of back pressure;
2.The main oart is the hollow free-ball float trap of stainless steel,which is the round float ball finely grind in this trap.
3.The parts of this trap are made of stainless steel,featured with anti-corruption,abrasive and long service life.
主要零件材料和性能参数 Main oarts and specifications
主要零部件材料表
Main parts materiials |
Body/Bonnel
阀体、阀盖 |
HT200、WCB |
性能参数
Performance parameter |
Lowest working pressure
最低工作压力 |
0.01MPa |
|
Float Ball
浮球 |
Stainless Steel
不锈钢 |
The lowest supercooling degree
最小过冷度 |
0℃ |
|
Seat
阀座 |
Chromium stainless steel
铬不锈钢 |
Energy conservation effect
节能效果 |
15-40% |
|
In sets Filters
内置过滤网 |
Stainless Steel
不锈钢 |
Highest permission back pressure rate
最高允许背压率 |
85% |
|
Gasket
垫片 |
The stainless steel metal twines the pad
不锈钢金属缠绕垫 |
Highest permissible temoerature
最高允许温度 |
铸钢425℃ |
技术参数表 Technological parameter date
Model
产品型号 |
Nominal diameter
公称通径（DN） |
Connection
连接方式 |
Pressure rating（MPa）
使用压力 |
Max allowable TMP(℃)
最高允许温度 |

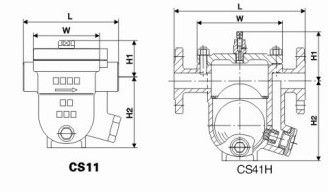

Extermal dimensions(mm)外型尺寸 |
Re.weight
参考重量（Kg） |
|
L |
H1 |
H2 |
W |
|
CS1116H-16C-B |
15~25 |
Thread Socker weld
螺纹承插焊 |
0.01~1.6 |
300 |
150 |
85 |
105 |
100 |
6 |
|
170 |
100 |
128 |
120 |
8.5 |
|
CS11H-16C-D |
32~50 |
300 |
230 |
100 |
165 |
185 |
140 |
|
CS41H-16C-B |
15~20 |
Flange法兰 |
0.01~4.0 |
300 |
195 |
100 |
115 |
135 |
10 |
|
25 |
210 |
|
CS41H-25C-B |
15~20 |
350 |
210 |
100 |
120 |
135 |
11 |
|
25 |
230 |
|
CS41H-40C-B |
15~20 |
425 |
250 |
100 |
130 |
135 |
12.5 |
|
25 |
|
CS41H-16C-D |
20~32 |
Flange法兰 |
0.01~4.0 |
300 |
270 |
105 |
165 |
175 |
16.5 |
|
CS41H-25-D |
40 |
350 |
270 |
105 |
165 |
175 |
18.5 |
|
50 |
290 |
|
CS41H-40-D |
20~50 |
425 |
350 |
125 |
190 |
200 |
27 |
|
CS41H-16C-F |
50~65 |
Flange法兰 |
0.01~4.0 |
300 |
410 |
130 |
250 |
270 |
52 |
|
80 |
430 |
|
CS41H-25-F |
50~65 |
350 |
430 |
130 |
260 |
270 |
67 |
|
80~100 |
|
CS41H-40-F |
50~65 |
425 |
430 |
130 |
260 |
270 |
69 |
|
80~100 |
|
CS41H-16C-G |
80~100 |
Flange法兰 |
0.01~4.0 |
300 |
550 |
150 |
310 |
285 |
85 |
|
CS41H-25-G |
80~150 |
350 |
570 |
190 |
340 |
315 |
108 |
|
CS41H-40-G |
80~150 |
425 |
570 |
190 |
340 |
315 |
116 |
|
CS41H-16C-GG |
150~200 |
Flange法兰 |
0.01~1.6 |
350 |
575 |
210 |
360 |
330 |
143 | |
